Piher Potentiometer Pt15 10k 470k Carbon Film Variable Resistor

Products

Conductive Plastic Potentiometer

Piher Potentiometer Pt15 10k 470k Carbon Film Variable Resistor

MOQ:	100 Pieces
Price:	$0.085 - $0.12/piece
Standard Packaging:	500pcs/plastic bag, 2000pcs/small carton. 10000pcs/master carton.
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	3,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

Product Name:

PT15 Carbon Film Potentiometer

Product Type:

Single Turn Trimmer Resistor

Termination Style:

Through Hole

Mounting Style:

PCB Mount

Taper:

Linear

Element Type:

Carbon Film

Resistance Range:

100Ω~5MΩ

Standard Resistance Tolerance:

Nominal Power 50°C (122°F):

0.25W

Electrical Rotation Angle:

240° ± 20°

Minimum Order Quantity:

100 Pieces

Price:

$0.085 - $0.12/piece

Packaging Details:

500pcs/plastic bag, 2000pcs/small carton. 10000pcs/master carton.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

3,000,000 Pieces Per Month

Highlight:

470k Carbon Film Potentiometer

Piher Carbon Film Potentiometer

10k Carbon Film Potentiometer

Product Description

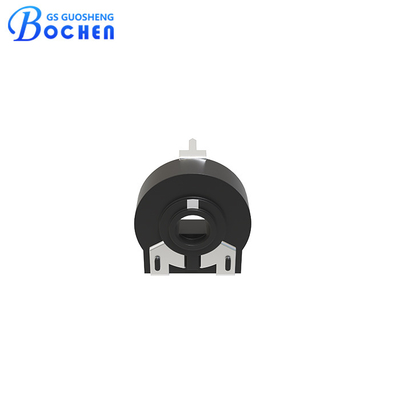

Piher Potentiometer Pt15 10k 470k Carbon Film Variable Resistor

Description

The PT15 carbon film potentiometer is a compact and high-performance solution for applications requiring reliable and frequent manual adjustments. With a 15mm diameter and shaftless design, it supports a wide range of interface mechanisms—from customized knobs to motorized adjustments.

Piher Potentiometer Pt15 10k 470k Carbon Film Variable Resistor 0

Engineered with a carbon or cermet resistive element, this potentiometer ensures accurate control with linearity up to 3%, supporting resistance values from 100Ω to 5MΩ. It features tactile detents (up to 38), long operational life (up to 100,000 cycles), and IP54-rated protection for use in demanding environments.

Features

High reliability with up to 100,000 rotational life cycles
Choice of carbon or cermet resistive elements
Available in linear, logarithmic, and antilogarithmic tapers
Up to 38 mechanical detents for tactile feedback
Self-extinguishing plastic housing (UL 94V-0 available)
SPDT switch and low torque versions available
Magazine packaging for automated insertion
Top adjustment, through-hole mounting
RoHS, REACH compliant

Specification

Electrical Specifications	Taper	Lin
	Standard Resistance Range	100Ω ~ 5MΩ
	Resistance Tolerance	±20%
	Max. Voltage	250 V_DC
	Nominal Power 50°C (122°F)	0.25 W
	Residual Resistance	≤ 0.5% Rn (5Ω min.)
	Equivalent Noise Resistance	≤ 3% Rn (3Ω min.)
	Operating Temperature	-25°C ~ +70°C
Mechanical Specifications	Mechanical Rotation Angle	265° ± 5°
	Electrical Rotation Angle	240° ± 20°
	Rotational Torque	0.5 to 2.5 Ncm (0.7 to 3.4 in-oz)
	Stop Torque	> 10 Ncm (>14 in-oz)
	Rotational Life	Up to 100k cycles
Environmental Testing	Electrical Life	1.000h at 50°C; 0.15W; ±5%
	Mechanical Life	1000 cycles at 10 to 15 cpm; ±3% (Rn < 1M )
	Temperature Coefficient	-25°C; +70°C; ±300 ppm/°C (Rn < 100K)
	Thermal Cycling	16h at 85°C and 2h at -25°C; ±2.5%
	Damp Heat	500h at 40°C and 95% relative humidity (RH); ±5%
	Vibration	2h each plane at 10Hz ~ 55Hz; ±2%
	Storage	6 month at 23°C ±2°C and 50% RH; ±2.5%

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

Three terminal styles:

Piher Potentiometer Pt15 10k 470k Carbon Film Variable Resistor 2

Applications

Appliance program selectors
Thermostat control and timers
Power tools and consumer electronics
Test and measurement instruments
Control relays and automation panels

Why Choose Us

Factory Direct Supply — no intermediaries, best prices
Certified Quality — RoHS, REACH, and more
Flexible Supply — large inventory & fast delivery
OEM & ODM Support — customized solutions available
Professional After-sales Service — responsive and reliable

Product Catalog

Piher Potentiometer Pt15 10k 470k Carbon Film Variable Resistor 4

Piher Potentiometer Pt15 10k 470k Carbon Film Variable Resistor 5

Piher Potentiometer Pt15 10k 470k Carbon Film Variable Resistor 6
