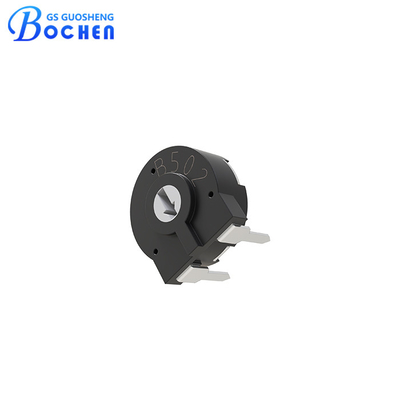

Phier Pt10 Carbon Potentiometer 10mm Top Adjustment Variable Trimmer Resistor

MOQ: 100 Pieces
Price: $0.075 - $0.80/piece
Standard Packaging: 500 pieces/plastic bag; 2000 pieces/small carton; 10000 pieces/master carton.
Delivery Period: 1-7 Workdays
Payment Method: T/T,L/C,D/A,D/P,Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, Reach
Model Number
PT10
Product Name:
PT10 Carbon Film Potentiometer
Product Type:
Single Turn Trimmer
Element Type:
Carbon
Adjustment:
Top Adjust
Termination Style:
Through Hole
Resistance Range:
100Ω-5MΩ
Resistance Tolerance:
20%
Nominal Power 50°C (122°F):
50°C, 0.15 W
Electrical Rotation Angle:
220° ± 20°
Mechanical Rotation Angle:
235° ± 5°
Highlight:

10mm Carbon Potentiometer

,

10mm Variable Trimmer Resistor

,

Phier Carbon Potentiometer

Product Description

Phier Pt10 Carbon Potentiometer 10mm Top Adjustment Variable Trimmer Resistor



Description



The PT10 Carbon Trimmer Potentiometer is designed for stable, precise resistance adjustments in a wide range of electronic applications. With a compact 10mm diameter and a carbon resistive element, it ensures consistent performance and long-lasting reliability, making it ideal for professional electronics designs where fine tuning is essential.

Phier Pt10 Carbon Potentiometer 10mm Top Adjustment Variable Trimmer Resistor

Features



  • Single-turn carbon trimmer potentiometer

  • Compact 10mm diameter

  • Top adjustment with hexagonal slot

  • Vertical adjustment / horizontal mounting

  • Straight PCB terminals, through-hole type

  • Wide resistance range: 100Ω to 5MΩ

  • Operating temperature: -25°C to +70°C

  • Power rating: 0.15W at 50°C

  • Long life: up to 100,000 cycles

  • Ideal for volume, frequency, speed, and temperature control

Phier Pt10 Carbon Potentiometer 10mm Top Adjustment Variable Trimmer Resistor

Specification



Electrical Specifications Taper Lin
Standard Resistance Range 100Ω~5MΩ
Standard Resistance Tolerance ± 20%
Max. Voltage 200 VDC
Nominal power 50°C (122°F) 50°C, 0.15 W
Residual resistance ≤ 0.5% Rn (5Ω min.)
Equivalent noise resistance ≤ 3% Rn (3Ω min.)
Operating temperature -25°C to +70°C
Mechanical Specifications Mechanical rotation angle 235° ± 5°
Electrical rotation angle 220° ± 20°
Rotational Torque 0.4 to 2 Ncm (0.6 to 2.7 in-oz)
Stop Torque > 5 Ncm (>7 in-oz)
Push-pull force over the rotor > 49N
Life Up to 100k cycles
Environmental Testing Electrical life 1.000h at 50°C; 0.15W; ±5%
Mechanical life 1000 cycles at 10 to 15 cpm; ±3 % (Rn < 1M )
Temperature coefficient –25°C; +70°C; ±300 ppm/°C (Rn < 100K)
Thermal cycling 16h at 85°C and 2h at -25°C; ±2.5%
Damp heat 500h at 40°C and 95% relative; ±5%
Vibration 2h each plane at 10Hz - 55Hz; ±2%
Storage 6 month at 23°C ±2°C and 50% RH;
±2.5%




Dimension



Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.Phier Pt10 Carbon Potentiometer 10mm Top Adjustment Variable Trimmer Resistor

Applications



  • Home appliance program selectors

  • Thermostat adjustment modules

  • Timer and control relay systems

  • Power tools and handheld device control

  • Test and measurement instrumentation

  • General-purpose electronics

Phier Pt10 Carbon Potentiometer 10mm Top Adjustment Variable Trimmer Resistor

Why Choose Us



  • Factory Direct Supply – no middleman cost

  • Certified with RoHS, REACH, and more

  • Fast Delivery – strong production capability

  • OEM/ODM support with professional after-sales service
