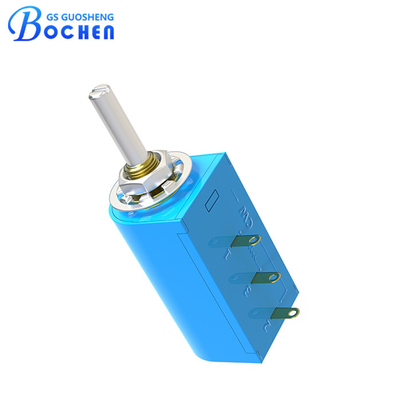

BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot

MOQ: 100 Pieces
Price: $2.50 - $5.00/Piece
Standard Packaging: 10 Pieces Per Box
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, Reach
Model Number
WXD3-11
Product Name:
WXD3-11 5k Ohms 5% Lin 0.3% Multiturn Wirewound Potentiometer For Test And Lab Equipment
Product Type:
Wirewound Potentiometer
Termination Style:
Solder Lug
Standard Resistance Range:
100Ω~50KΩ
Resistance Tolerance:
±5%
Independent Linearity:
±0.25%
Effective Electrical Travel:
≥3600°-10°
Total Mechanical Travel:
3600°±10°
Temperature Range:
-55℃~+125℃
Temperature Coefficient:
±100ppm/℃
Minimum Order Quantity:
100 Pieces
Price:
$2.50 - $5.00/Piece
Packaging Details:
10 Pieces Per Box
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
3,000,000 Pieces Per Month
Highlight:

BOCHEN Wirewound Rotary Pot

,

PCB Mount Wirewound Rotary Pot

,

Panel Mount Wirewound Rotary Pot

Product Description

BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot



Description



The BOCHEN WXD2-11 Wirewound Potentiometer is a high-precision, multi-turn component designed for accurate resistance control in industrial and laboratory applications. Built with a durable wirewound resistive element and gold-plated brass terminals, it ensures long-term reliability and stable electrical performance under demanding conditions.

BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot 0

Key Features

✔ Multi-Turn Design: Available in 3, 5, and 10 turn configurations for precise control
✔ High Linearity: Independent linearity of 0.25%, ensuring accurate resistance adjustments
✔ Wide Ohmic Range: Resistance values from 100Ω to 50KΩ with a ±5% tolerance
✔ Temperature Stability: Operating range of -55℃ to +125℃, with a low temperature coefficient of 100ppm/°C
✔ Mounting Options: Standard bushing mount with optional servo mount for diverse applications
✔ Versatile Installation: Panel mounting and PCB mounting options available



BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot 1



With a power rating of 1W, the WXD3-11 potentiometer is engineered for precise voltage and signal control, making it an essential component for critical electronic systems.



Specification



Electrical Characteristics Nominal Resistance Range 100Ω~50KΩ
Resistance Tolerance ±5%
Independent Linearity ±0.25%
Effective Electrical Travel ≥1800°-10°
Terminal Resistance ≤0.2%R or 5Ω
Noise ≤3%R or 3Ω
Insulation Resistance RI≥1GΩ
Withstand Voltage 101.3kPa 710V, 8.5kPa 470V
Environment Characteristics Rated Power 1W@+70℃, 0W@+125℃
Temperature Range -55℃~+125℃
Temperature Coefficient ±100ppm/℃
Temperature Variation ΔR≤2%R, Δ(Uab/Uac)≤±1%
Vibration 390m/s2, 4000cycles, R≤±1%R
Collision 10-500Hz, 0.75mm,or 98m/s2,
6hΔR≤土1%R. Δ(Uab/Uac)≤±2%
Climate Category ΔR≤±3%R, RI≥100MΩ
Electrical Endurance At 70°C 2W, 1000h, ΔR≤±3%R
Rotational Life 10000 cycles, ΔR≤±3%R
Steady Damp Heat ΔR≤±3%R, RI≥100MΩ
Physical Characteristics Total Mechanical Travel 1800°±10°
Starting Torque ≤36mN·m
Clutch Torque ≤300mN·m



Dimension

BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot 2

Packaging



Packaging specification: 20 pieces per box.



Applications



1. Test & Laboratory Equipment

  • Integral to calibration instruments, signal generators, and measuring devices
  • Ensures accurate tuning and resistance adjustments

2. Industrial Automation

  • Used in motor controllers, automation systems, and process control
  • Provides precise positioning and voltage regulation

3. Medical Equipment (Non-Life Support)

  • Applied in diagnostic instruments, imaging devices, and monitoring systems
  • Ensures stable and precise control of electrical parameters

The BOCHEN WXD2-11 wirewound potentiometer delivers exceptional performance, high precision, and durability, making it a trusted choice for professionals in industrial, laboratory, and medical applications.



BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot 3



Advantage



• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
