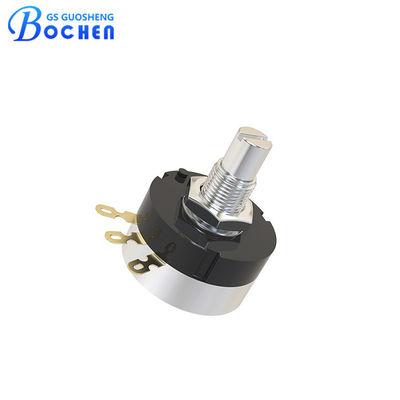

1W/40C Rated Power BOCHEN Precision Rotary Resistor 5k 10k Rotary Potentiometer

MOQ: 100 Pieces
Price: $0.98 - $1.80/Piece
Standard Packaging: Standard Packing
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, Reach
Model Number
WX17
Product Name:
WX17 Wirewound Potentiometer
Nominal Resistance Range:
50Ω~10KΩ
Resistance Tolerance:
±10%
Rated Power:
1W/40℃
Effective Travel:
Mech.258°±5°,elektr.270°±5°
Maximum Contact Current:
100mA
Rotational Life:
5,000 Cycles Without Discontinuity
Temperature Coefficient:
100ppm/℃
Minimum Order Quantity:
100 Pieces
Price:
$0.98 - $1.80/Piece
Packaging Details:
Standard Packing
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
3,000,000 Pieces Per Month
Highlight:

5k Precision Rotary Resistor

,

40C Precision Rotary Resistor

,

1W Precision Rotary Resistor

Product Description

BOCHEN Precision Rotary Resistor 5k 10k Rotary Potentiometer



Description



The WX17 Wirewound Potentiometer is a high-precision component designed for applications requiring stable and accurate resistance control. Built with a wirewound resistive element, it ensures exceptional durability, reliability, and smooth operation over extended usage. Thanks to its robust construction, the WX17 is ideal for demanding environments where precise voltage, current, or signal adjustments are critical.

1W/40C Rated Power BOCHEN Precision Rotary Resistor 5k 10k Rotary Potentiometer 0



Key Features

✔ High Accuracy & Stability – Ensures precise and consistent resistance adjustment
✔ Long Service Life – Durable wirewound construction withstands extended operation
✔ Smooth & Reliable Operation – Low noise and minimal resistance variation
✔ Versatile Applications – Suitable for industrial, automotive, medical, and communication sectors

1W/40C Rated Power BOCHEN Precision Rotary Resistor 5k 10k Rotary Potentiometer 1

Specification



Electrical Characteristics Standard Resistance Range 100Ω-10KΩ
Resistance Tolerance ±5%
Linearity 0.25%
Effective Electrical Stroke 280°±5℃
Terminal resistance 5ΩMax
Rotating Noise 3%R or 5Ω
Insulation Resistance 100MΩ, 500Vdc, 1minute
Withstanding Voltage 101.3kpa, 500Vac; 8.5kpa, 300Vac
Environment Characteristics Power Rating(300 volts max.) 2W(70℃), 0W(125℃)
Operating Temp. Range -40℃~+125℃
Temperature Coefficient ±50ppm/℃
Temperature Variation -55℃～+125℃, 5 No-load cycles,ΔR/R≤±5%
Collision 390m/s2,4000 cycles,R≤±2%R
Vibration (10-50HZ,Amplitude 1.5mm),3 directions,
2H in each direction,ΔR/R≤±3%
70℃ Electrical Endurance 2W,1000h,ΔR≤±2%R
Rotational Life 200(cycles),ΔR≤±2%R
Physical Characteristics Mechanical Angle 300°±5°
Starting Torque ≤10 mN.m
Stop Strength ≤15 mN.m



Dimension



1W/40C Rated Power BOCHEN Precision Rotary Resistor 5k 10k Rotary Potentiometer 2


Packaging


Packaging specification: 10 pieces per box


1W/40C Rated Power BOCHEN Precision Rotary Resistor 5k 10k Rotary Potentiometer 3



Application



1. Industrial Control Systems

  • Used in motor speed controllers, servo systems, and automation equipment
  • Enables precise speed, position, and voltage adjustments

2. Power Supplies & Voltage Regulators

  • Regulates variable power supplies for stable voltage output
  • Adjusts load conditions efficiently across different applications

3. Audio Equipment

  • Essential in professional amplifiers, mixers, and equalizers
  • Used for volume control, tone adjustments, and signal tuning

4. Test & Measurement Instruments

  • Key component in oscilloscopes, signal generators, and calibration equipment
  • Provides accurate resistance tuning for precise measurement and testing

5. Medical Devices

  • Used in medical imaging, patient monitoring, and diagnostic systems
  • Ensures precise voltage and signal control for critical applications

6. Communication Equipment

  • Integrated into radio frequency (RF) devices, antenna tuners, and transceivers
  • Optimizes signal matching and tuning for enhanced communication performance

7. Automotive Electronics

  • Applied in sensor calibration, actuator control, and power distribution
  • Helps optimize vehicle performance and efficiency

1W/40C Rated Power BOCHEN Precision Rotary Resistor 5k 10k Rotary Potentiometer 4



Advantage


• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
