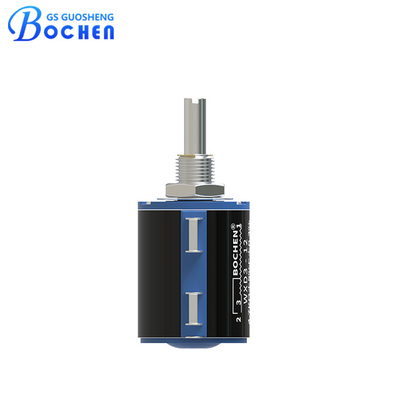

1W 10k Ohm Five Turn Precision Multiturn Potentiometer Wirewound Pot WXD3-12

Products

Conductive Plastic Potentiometer

1W 10k Ohm Five Turn Precision Multiturn Potentiometer Wirewound Pot WXD3-12

MOQ:	100 Pieces
Price:	$0.50 - $1.50/Piece
Standard Packaging:	20 pieces per box.
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	3,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

WXD3-12

Product Name:

WXD3-12 Wirewound Potentiometer

Range Of Nominal Resistance:

100Ω~47KΩ

Resistance Tolerance:

Independent Linearity:

±0.25%

Effective Travel:

≥1800°-10°

Rated Power:

1W@+70℃, 0W@+125℃

Temperature Range:

-55℃~+125℃

Temperature Coefficient:

100ppm/℃

Minimum Order Quantity:

100 Pieces

Price:

$0.50 - $1.50/Piece

Packaging Details:

20 pieces per box.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

3,000,000 Pieces Per Month

Highlight:

WXD3-12 precision multiturn potentiometer

Five Turn precision multiturn potentiometer

WXD3-12 wirewound pot

Product Description

WXD3-12 1W 10k ohm five turn precision multiturn wirewound potentiometer

Description:

The WXD3-12 wirewound potentiometer is a high-quality component known for its precise resistance control. With its compact design and smooth operation, it is suitable for a wide range of applications. It can handle high power levels and offers a wide range of resistance values. The WXD3-12 wirewound potentiometer is durable and reliable, making it a favored choice in audio equipment, industrial controls, power supplies, and other electronic systems.

Specification:

Electrical Characteristics	Nominal Resistance Range	100Ω~47KΩ
	Resistance Tolerance	±5%
	Independent Linearity	±0.25%
	Effective Travel	≥1800°-10°
	Terminal Resistance	≤0.2%R or 5Ω
	Noise	≤3%R or 3Ω
	Insulation Resistance	R≥1GΩ
	Withstand Voltage	101.3kPa 710V, 8.5kPa 470V
Environment Characteristics	Rated Power	1W@+70℃, 0W@+125℃
	Temperature Range	-55℃~+125℃
	Temperature Coefficient	±100ppm/℃
	Temperature Variation	ΔR≤2%R, Δ(Uab/Uac)≤±1%
	Vibration	390m/s², 4000cycles,R≤±1%R
	Collision	10-500Hz, 0.75mm,or 98m/s², 6hΔR≤土1%R, Δ(Uab/Uac)≤±2%
	Climate Category	ΔR≤±3%R, R1≥100MΩ
	Electrical Endurance At 70°C	1W, 1000h, ΔR≤±3%R
	Mechanical Endurance	10000 cycles, ΔR≤±3%R
	Steady Damp Heat	ΔR≤±3%R, R1≥100MΩ
Physical Characteristics	Total Mechanical Travel	1800°±10°
	Starting Torque	≤36mN·m
	Clutch Torque	≤300mN·m

Dimension:

1W 10k Ohm Five Turn Precision Multiturn Potentiometer Wirewound Pot WXD3-12 0

Packaging:

Packaging specification:20 pieces per box.

Applications:

The WXD3 wirewound precision potentiometer is widely used in various applications due to its high accuracy and reliability. Some of the key application areas include:

• Industrial Automation: Used in control systems for precise adjustment of machinery and equipment.
• Aerospace and Defense: Employed in navigation systems, control panels, and other critical components requiring high precision.
• Medical Equipment: Utilized in devices that need accurate control of parameters, such as in diagnostic machines and patient monitoring systems.
• Audio Equipment: Applied in high-fidelity audio systems for volume and tone control.
• Instrumentation: Used in scientific instruments for precise measurement and calibration.
• Telecommunications: Implemented in communication devices for tuning and signal adjustment.
• Automotive: Found in various automotive systems for controlling functions like throttle position and suspension settings.

These potentiometers are chosen for their durability, stability, and ability to maintain accuracy over time, making them suitable for critical and high-performance applications.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
