3006P-1-103 10k Ohm Multiturn Trimmer Potentiometer Adjustable 0.75w

Products

Conductive Plastic Potentiometer

3006P-1-103 10k Ohm Multiturn Trimmer Potentiometer Adjustable 0.75w

MOQ:	100 Pieces
Price:	$0.07 - $0.90/Piece
Standard Packaging:	1. 25 PCS/Tube, 4000 PCS/Carton. 2. Customization Package is available.
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3006P-A1

Product Name:

3006P-1-103 0.75w 10k Ohm Adjustable Multiturn Trimming Potentiometer

Product Type:

Trimmer Resistors

Element Type:

Cermet

Mounting Style:

PCB Mount

Termination Style:

PC Pin

Nominal Resistance Range:

10Ω-5MΩ

Resistance Tolerance:

Effective Travel:

20±2 Turns

Rated Power:

70℃，0.75W；125℃，0W

Temperature Coefficient:

±250 Ppm /°C, ±100 Ppm /°C

Total Mechanical Travel:

22±2 Turns

Withstand Voltage:

101.3KPa，500 Vac；8.5KPa，250 Vac

Minimum Order Quantity:

100 Pieces

Price:

$0.07 - $0.90/Piece

Packaging Details:

1. 25 PCS/Tube, 4000 PCS/Carton. 2. Customization Package is available.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

3006P multiturn trimmer

Adjustable multiturn trimmer

3006P multi turn trimmer potentiometer

Product Description

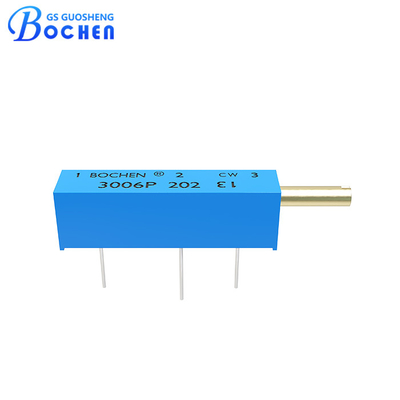

3006P-A1 0.75w 10k Ohm Adjustable Multiturn Trimming Potentiometer With 7mm Long Shaft

Descriptipion:

The 3006P-A1 cermet trimmer potentiometer is a precision variable resistor. With a Nominal Resistance Range of 10Ω-5MΩ, it is commonly used for fine adjustments in electronic circuits. This single-turn trim pot requires only one rotation to adjust its resistance. Its compact size, reliability, and accuracy make it a popular choice for applications such as audio equipment, instrumentation, and electronic prototypes where precise tuning or calibration is essential.

Specification:

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. R1≥1GΩ
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength Sea Level	500 Vac(1 Min.)
	Effective Travel	20(±2) Turns
Environment Characteristics	Weld Heat Resistance	250ºC , 10 Sec.
	Rated Power	70ºC, 0.75W; 125ºC, 0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250, ±100 ppm /°C
	Temperature Variation	ΔR≤±2%R, Δ(Uab/Uac)≤±1%
	Collision	10-500Hz, 0.75mm, 6h ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70ºC Rated Power; ΔR≤±3%R
	Mechanical Endurance	200 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	22±2 Turns
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension:

3006P-1-103 10k Ohm Multiturn Trimmer Potentiometer Adjustable 0.75w 0

Packaging:

Packaging specification: 1. 25 pieces/tube, 4000 pieces/carton. 2. Customization package is available.

Application:

The 3006P cermet trimmer finds application in a wide range of electronic and electrical systems where precise resistance adjustment is essential. Its versatility and reliability make it suitable for various industries including telecommunications, consumer electronics, industrial automation, and medical devices.

In telecommunications, the 3006P trimmer is utilized in signal processing equipment, ensuring accurate impedance matching and signal integrity. In consumer electronics, it plays a crucial role in audio equipment, ensuring consistent audio performance by fine-tuning circuit parameters. Industrial automation applications benefit from its ability to calibrate sensors and controllers, optimizing operational efficiency and accuracy.

Additionally, the 3006P trimmer is employed in medical devices where precise control over electrical resistance is vital for reliable and safe operation. Its robust construction and wide resistance range make it suitable for both low-power and high-power applications, contributing to the stability and functionality of critical electronic systems.

Overall, the 3006P cermet trimmer stands as a dependable choice in various sectors where precision and durability are paramount, enhancing performance and reliability in electronic applications.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.

Tags:

single turn trimmer,

smd trimmer potentiometer,
